| Nominal Rating [kVA] | 20 | 40 | 60 |
|---|---|---|---|
| Rectifier Type | 6p | 6p | 6p |
| Nominal input voltage | 380/400/415 Vac -wire plus ground | ||||||
| Input voltage range | 323 to 478 Vac | ||||||
| Nominal input frequency | 50/60 Hz | ||||||
| Input frequency range | 45 to 55 Hz/55 to 65 Hz | ||||||
| Nominal output voltage | 380/400/415 Vac - 3 Phase with Neutral | ||||||
| Output Power Factor | 0.9 | ||||||
| Voltage stability | ±1% (Steady state); ±5% (Transient state) | ||||||
| Transient recovery time | 20 milliseconds (max) | ||||||
| Frequency stability | ±0.1% (Synchronized with internal clock); ±6% (max)(Synchronized with bypass) | ||||||
| Overload capability | 101 to 110%, 60 minutes; 111 to 125%,10 minutes; 126 to 150%, 1 minute; | ||||||
| Voltage distortion | <1% | ||||||
| Voltage distortion with 100% Non- linear load | <5% | ||||||
| Permissible load unbalance | 100% | ||||||
| Non linear load capability | 100% | ||||||
| Load handing capability without kVA derating | 0.5 lagging to 0.9 lagging | ||||||
| Phase angle displacement accuracy 100% balanced load | ±1 | ||||||
| Phase angle displacement accuracy 100% balanced load | ±1° | ||||||
| Depth (mm) | 875 | 855 | |||||||||||||||||||||||||||||||||
| Width (mm) | 900 | 1250 | 1640 | 2280 | 2640 | ||||||||||||||||||||||||||||||
| Height (mm) | 1900 | ||||||||||||||||||||||||||||||||||
| General and safety requirements for UPS | IEC 62040-1 |
| EMC requirements for UPS | IEC 62040-2 |
| UPS Classification according to IEC 62040-3 | VFI-SS-111 |
| MODEL | STANDARD OFFERINGS | OPTIONAL |
|---|
| Nominal voltage | 415 V AC, 3 Phase, 3 wire ( +10 %, -20 % ) | 220 V AC 3 Phase, 3 wire (+ 10 % , -15 % ) | ||||||||||||
| Nominal Frequency | 50 Hz (± 10 %) | 60 Hz (± 6 %) | ||||||||||||
| Input Power factor | >>=0.88 up to 7.5 kVA and >=0.92 for 10 kVA and above | ≥ 0.94 | ||||||||||||
| Input Fault Level | 10 kA | 50kA (MCCB), 70kA (MCCB) Input Isolation Transformer | ||||||||||||
| Type | Full Wave, A-PFC Rectifier | 12 Pulse, above 20 kVA Rating |
| Type | • IGBT based Dual mode of charging • Suitable to charge VRLA-SMF, Lead Acid, Ni-Cd, Li-Ion battery. |
||||||
| Nominal Voltage Regulation | ± 1 % | ||||||
| Ripple (without Battery) | < 2 % | ||||||
| Charging Method | Constant Voltage Constant Current (CVCC) Auto & Manual with 0 to 24 Hr programmable timer | ||||||
| 240 VDC for 5 to 15 kVA (114 to 132 cells for Lead Acid & 181 to 210 cells for Ni-cd |
110 VDC (5-15 kVA UPS) (54 to 67 cells for Lead Acid & 86 to 96 cells for Ni-cd) |
||||||||||||||||||||||||||||||||||
| Battery Voltage | 300 VDC for 20 kVA (144 to 162 cells for Lead Acid & 229 to 248 cells for Ni-cd) |
220 VDC (20-120 kVA UPS) (108 to 122 cells for Lead Acid & 172 to 191 cells for Ni-cd) |
360 VDC for 30-120 kVA (174 to 192 cells for Lead Acid & 277 to 305 cells for Ni-cd) |
||||||||||||||||||||||||||||||||
| Nominal Voltage | 220V / 230V / 240V AC 1P & 400 / 415V AC 3P | 110 / 115 / 120 V AC 1P & 380V AC 3P |
|---|---|---|
| Load PF Support Capacity | 0.6 to Unity (within its kVA / kW rating) | |
| Overload Capacity | 110 % for 60 min, 125 % for 10 min. , 150 % for 1 min |
| Power Module (kVA/ kW) | 30 | 50 | 50 | 50 | 50 |
| Power (kW) | 30-150 | 30-300 | 50-250 | 50-400 | 50 - 600 |
| Power (kW) | 30-150 | 30-300 | 50-250 | 50-400 | 50 - 600 |
| AC - AC on-line double conversion efficiency (%) | Between 95% and 96% for load >30% | Between 95.5% and 96.3% for load >30% |
| AC - AC Eco mode efficiency (%) | >98% | >99% |
| Rated input voltage (VAC) | 380/400/415 VAC, three-phase four-wire | |
| Rated operating frequency (Hz) | 50/60 Hz | |
| Input voltage range (VAC) | 477 VAC - 305 VAC at full load, 477 VAC - 228 VAC at 70% load | |
| Input frequency range (Hz) | 40 Hz - 70 Hz | |
| Input power factor | >0.99 at full load, >0.98 at half load | >0.99 |
| Input THDI (%) | >5% | > �3% |
| Battery number | 30, 32, 34, 36, 38, 40 | 32, 34, 36, 38, 40, 42, 4 |
| Battery Compensation | Yes | |
| Maximum runtime with internal battery | 30 kVA: 30’ | N/A |
| 60 kVA: 10’ | N/A | |
| 90 kVA: 5’ | N/A |
| Inverter output voltage (VAC) | 380/400/415 VAC, three-phase four-wire | |
| Inverter output frequency (Hz) | 50/60 Hz | |
| Output frequency stability (Hz) | 50Hz/60 Hz ±0.02% | |
| Voltage stability in steady state | ±1% | |
| Voltage stability in transient state | Complies with IEC/EN 62040-3, class 1 | Inverter overload capacity | 1 hour for 105%, 10 mins for 125%, 1 min for 150%, 200 ms for >150% |
1 hour for 110%, 10 mins for 125%, 1 min for 150%, 200 ms for >150% |
| 100% linear load | <1 | ||
| 100% non-linear load | <4 | <3 | |
| Output frequency stability (Hz) | 50Hz/60 Hz ±0.02% |
| Bypass input voltage | 380/400/415 VAC, three-phase four-wire |
| Bypass voltage range settable through software | Default: -20% to + 15%, other values, such as -40%, -30%, -10% and 10%, +15% |
| Bypass overload capacity | 135% long term, 170% for 1 hour, 1000% for 100 ms 110% continuous operation, 125% for 10 mins, 150% for 1 min, >400% for 100 ms |
| Operating temperature range (°C) | 2006/95/EC with the Amendment Directive 93/68/EEC Directive for electromagnetic compatibility 2004/108/EC | ||
| General and safety requirements for UPS used in operator access areas | IEC/EN/BS 62040-1:2008 | ||
| Electromagnetic compatibility (EMC) requirements for UPS | IEC/EN/BS 62040-2: Immunity category C2, Emission category C2 |
IEC/EN/BS 62040-2: Immunity category C3, Emission category C3 |
IEC/EN/BS 62040-2: Immunity category C3, Emission category C3 |
| Relative Humidity | ≤95% | ||
| Noise (1m) | 52 - 62 dBA, adjusted according to load rate and number of modules 60 - 65 dBA, adjusted according to load rate and number of modules |
<70 dBA | |
| Protection Level | IP20 |
| Low Voltage Directive | 0 - 40˚C* | ||
| Storage temperature (°C) | -25 to 70˚C | ||
| Maximum Operating altitude | ≤1 000 m, when operating at 1000 - 2000 m, derated by 1% for every 100 m increase of altitude |
≤3000 m above sea level | |
| Relative Humidity | ≤95% | ||
| Noise (1m) | 52 - 62 dBA, adjusted according to load rate and number of modules 60 - 65 dBA, adjusted according to load rate and number of modules |
<70 dBA | |
| Protection Level | IP20 |
| Dimension, w x h x d (mm) | 600 x 1996 x 1100 | 1200 x 1996 x 1100 | 1000 x 2000 x 1000 | 1400 x 2000 x 950 | 1800 x 2000 x 950 |
| Weight (kg) | 30 kVA: 280 | 30 kVA: 362 | 50 kVA: 411 | 300 kVA: 862 | 300 kVA: 986 |
| 60 kVA: 315 | 60 kVA: 397 | 100 kVA: 454 | 350 kVA: 905 | 350 kVA: 1029 | |
| 90 kVA: 350 | 90 kVA: 432 | 150 kVA: 497 | 400 kVA: 948 | 400 kVA: 1072 | |
| 120 kVA: 385 | 120 kVA: 466 | 200 kVA: 540 | 450 kVA: 1115 | ||
| 150 kVA: 420 | 150 kVA: 500 | 250 kVA: 583 | 500 kVA: 1158 | ||
| 150 kVA: 420 | 150 kVA: 500 | 250 kVA: 583 | 500 kVA: 1158 | ||
| 180 kVA: 535 | 550 kVA: 1201 | ||||
| 210 kVA: 570 | 600 kVA: 1244 | ||||
| 240 kVA: 602 | |||||
| 270 kVA: 635 | |||||
| 300 kVA: 670 |
Reliable, High-Performance UPS for Mission-Critical Applications

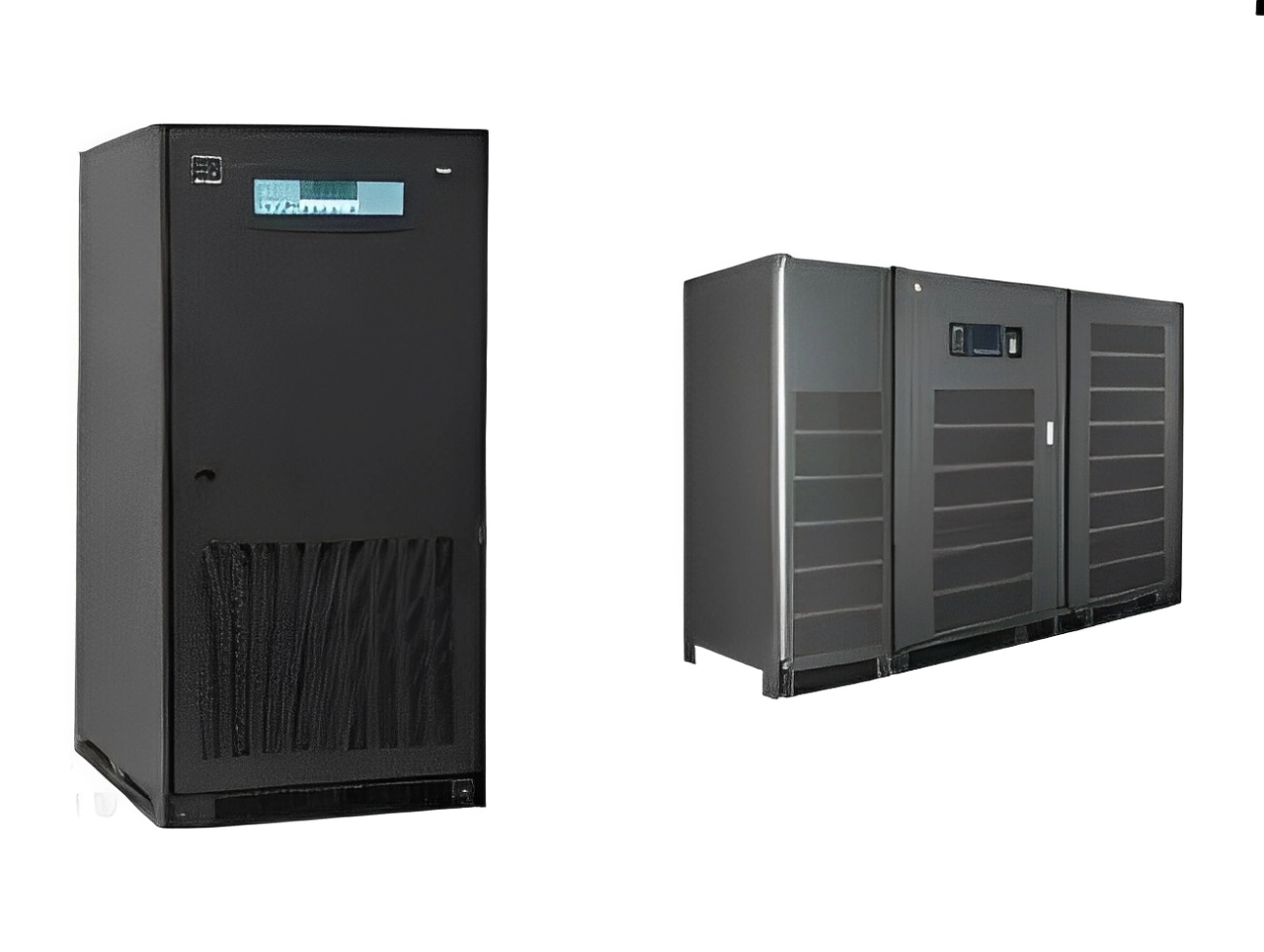

The Vertiv™ Liebert® Hipulse-U is a robust and energy-efficient Uninterruptible Power Supply (UPS) designed to provide reliable power protection for critical applications. With a power range from 30kVA to 500kVA, it ensures uninterrupted, high-quality power for data centers, IT infrastructure, industrial facilities, healthcare systems, and other sensitive environments.
Key Features:
✅ True Online Double-Conversion Technology – Ensures seamless power protection.
✅ High Efficiency – Optimized power usage for reduced operating costs.
✅ Scalability & Flexibility – Available in multiple configurations to suit diverse power needs.
✅ Advanced Monitoring & Control – Intelligent diagnostics and remote management options.
✅ Robust Battery Management – Extends battery life and enhances reliability.
Ideal for enterprises requiring continuous uptime, voltage regulation, and superior power quality, the Liebert® Hipulse-U is engineered to safeguard your operations against power disturbances.
The Liebert Hipulse-U offers a reliable, scalable and user-friendly solution to ensure availability of various critical applications. The Liebert Hipulse-U offers protection to your investment, and provide lower cost of ownership through its digital architecture and range of options which you can customize specifically for your needs.
Technical Specifications- Vertiv™ Liebert® Hipulse-U | 30kVA - 500kVA
| Nominal Rating [kVA] | 20 | 40 | 60 |
|---|---|---|---|
| Rectifier Type | 6p | 6p | 6p |
| Nominal input voltage | 380/400/415 Vac -wire plus ground | ||||||
| Input voltage range | 323 to 478 Vac | ||||||
| Nominal input frequency | 50/60 Hz | ||||||
| Input frequency range | 45 to 55 Hz/55 to 65 Hz | ||||||
| Nominal output voltage | 380/400/415 Vac - 3 Phase with Neutral | ||||||
| Output Power Factor | 0.9 | ||||||
| Voltage stability | ±1% (Steady state); ±5% (Transient state) | ||||||
| Transient recovery time | 20 milliseconds (max) | ||||||
| Frequency stability | ±0.1% (Synchronized with internal clock); ±6% (max)(Synchronized with bypass) | ||||||
| Overload capability | 101 to 110%, 60 minutes; 111 to 125%,10 minutes; 126 to 150%, 1 minute; | ||||||
| Voltage distortion | <1% | ||||||
| Voltage distortion with 100% Non- linear load | <5% | ||||||
| Permissible load unbalance | 100% | ||||||
| Non linear load capability | 100% | ||||||
| Load handing capability without kVA derating | 0.5 lagging to 0.9 lagging | ||||||
| Phase angle displacement accuracy 100% balanced load | ±1 | ||||||
| Phase angle displacement accuracy 100% balanced load | ±1° | ||||||
| Depth (mm) | 875 | 855 | |||||||||||||||||||||||||||||||||
| Width (mm) | 900 | 1250 | 1640 | 2280 | 2640 | ||||||||||||||||||||||||||||||
| Height (mm) | 1900 | ||||||||||||||||||||||||||||||||||
| General and safety requirements for UPS | IEC 62040-1 |
| EMC requirements for UPS | IEC 62040-2 |
| UPS Classification according to IEC 62040-3 | VFI-SS-111 |
| MODEL | STANDARD OFFERINGS | OPTIONAL |
|---|
| Nominal voltage | 415 V AC, 3 Phase, 3 wire ( +10 %, -20 % ) | 220 V AC 3 Phase, 3 wire (+ 10 % , -15 % ) | ||||||||||||
| Nominal Frequency | 50 Hz (± 10 %) | 60 Hz (± 6 %) | ||||||||||||
| Input Power factor | >>=0.88 up to 7.5 kVA and >=0.92 for 10 kVA and above | ≥ 0.94 | ||||||||||||
| Input Fault Level | 10 kA | 50kA (MCCB), 70kA (MCCB) Input Isolation Transformer | ||||||||||||
| Type | Full Wave, A-PFC Rectifier | 12 Pulse, above 20 kVA Rating |
| Type | • IGBT based Dual mode of charging • Suitable to charge VRLA-SMF, Lead Acid, Ni-Cd, Li-Ion battery. |
||||||
| Nominal Voltage Regulation | ± 1 % | ||||||
| Ripple (without Battery) | < 2 % | ||||||
| Charging Method | Constant Voltage Constant Current (CVCC) Auto & Manual with 0 to 24 Hr programmable timer | ||||||
| 240 VDC for 5 to 15 kVA (114 to 132 cells for Lead Acid & 181 to 210 cells for Ni-cd |
110 VDC (5-15 kVA UPS) (54 to 67 cells for Lead Acid & 86 to 96 cells for Ni-cd) |
||||||||||||||||||||||||||||||||||
| Battery Voltage | 300 VDC for 20 kVA (144 to 162 cells for Lead Acid & 229 to 248 cells for Ni-cd) |
220 VDC (20-120 kVA UPS) (108 to 122 cells for Lead Acid & 172 to 191 cells for Ni-cd) |
360 VDC for 30-120 kVA (174 to 192 cells for Lead Acid & 277 to 305 cells for Ni-cd) |
||||||||||||||||||||||||||||||||
| Nominal Voltage | 220V / 230V / 240V AC 1P & 400 / 415V AC 3P | 110 / 115 / 120 V AC 1P & 380V AC 3P |
|---|---|---|
| Load PF Support Capacity | 0.6 to Unity (within its kVA / kW rating) | |
| Overload Capacity | 110 % for 60 min, 125 % for 10 min. , 150 % for 1 min |
| Power Module (kVA/ kW) | 30 | 50 | 50 | 50 | 50 |
| Power (kW) | 30-150 | 30-300 | 50-250 | 50-400 | 50 - 600 |
| Power (kW) | 30-150 | 30-300 | 50-250 | 50-400 | 50 - 600 |
| AC - AC on-line double conversion efficiency (%) | Between 95% and 96% for load >30% | Between 95.5% and 96.3% for load >30% |
| AC - AC Eco mode efficiency (%) | >98% | >99% |
| Rated input voltage (VAC) | 380/400/415 VAC, three-phase four-wire | |
| Rated operating frequency (Hz) | 50/60 Hz | |
| Input voltage range (VAC) | 477 VAC - 305 VAC at full load, 477 VAC - 228 VAC at 70% load | |
| Input frequency range (Hz) | 40 Hz - 70 Hz | |
| Input power factor | >0.99 at full load, >0.98 at half load | >0.99 |
| Input THDI (%) | >5% | > �3% |
| Battery number | 30, 32, 34, 36, 38, 40 | 32, 34, 36, 38, 40, 42, 4 |
| Battery Compensation | Yes | |
| Maximum runtime with internal battery | 30 kVA: 30’ | N/A |
| 60 kVA: 10’ | N/A | |
| 90 kVA: 5’ | N/A |
| Inverter output voltage (VAC) | 380/400/415 VAC, three-phase four-wire | |
| Inverter output frequency (Hz) | 50/60 Hz | |
| Output frequency stability (Hz) | 50Hz/60 Hz ±0.02% | |
| Voltage stability in steady state | ±1% | |
| Voltage stability in transient state | Complies with IEC/EN 62040-3, class 1 | Inverter overload capacity | 1 hour for 105%, 10 mins for 125%, 1 min for 150%, 200 ms for >150% |
1 hour for 110%, 10 mins for 125%, 1 min for 150%, 200 ms for >150% |
| 100% linear load | <1 | ||
| 100% non-linear load | <4 | <3 | |
| Output frequency stability (Hz) | 50Hz/60 Hz ±0.02% |
| Bypass input voltage | 380/400/415 VAC, three-phase four-wire |
| Bypass voltage range settable through software | Default: -20% to + 15%, other values, such as -40%, -30%, -10% and 10%, +15% |
| Bypass overload capacity | 135% long term, 170% for 1 hour, 1000% for 100 ms 110% continuous operation, 125% for 10 mins, 150% for 1 min, >400% for 100 ms |
| Operating temperature range (°C) | 2006/95/EC with the Amendment Directive 93/68/EEC Directive for electromagnetic compatibility 2004/108/EC | ||
| General and safety requirements for UPS used in operator access areas | IEC/EN/BS 62040-1:2008 | ||
| Electromagnetic compatibility (EMC) requirements for UPS | IEC/EN/BS 62040-2: Immunity category C2, Emission category C2 |
IEC/EN/BS 62040-2: Immunity category C3, Emission category C3 |
IEC/EN/BS 62040-2: Immunity category C3, Emission category C3 |
| Relative Humidity | ≤95% | ||
| Noise (1m) | 52 - 62 dBA, adjusted according to load rate and number of modules 60 - 65 dBA, adjusted according to load rate and number of modules |
<70 dBA | |
| Protection Level | IP20 |
| Low Voltage Directive | 0 - 40˚C* | ||
| Storage temperature (°C) | -25 to 70˚C | ||
| Maximum Operating altitude | ≤1 000 m, when operating at 1000 - 2000 m, derated by 1% for every 100 m increase of altitude |
≤3000 m above sea level | |
| Relative Humidity | ≤95% | ||
| Noise (1m) | 52 - 62 dBA, adjusted according to load rate and number of modules 60 - 65 dBA, adjusted according to load rate and number of modules |
<70 dBA | |
| Protection Level | IP20 |
| Dimension, w x h x d (mm) | 600 x 1996 x 1100 | 1200 x 1996 x 1100 | 1000 x 2000 x 1000 | 1400 x 2000 x 950 | 1800 x 2000 x 950 |
| Weight (kg) | 30 kVA: 280 | 30 kVA: 362 | 50 kVA: 411 | 300 kVA: 862 | 300 kVA: 986 |
| 60 kVA: 315 | 60 kVA: 397 | 100 kVA: 454 | 350 kVA: 905 | 350 kVA: 1029 | |
| 90 kVA: 350 | 90 kVA: 432 | 150 kVA: 497 | 400 kVA: 948 | 400 kVA: 1072 | |
| 120 kVA: 385 | 120 kVA: 466 | 200 kVA: 540 | 450 kVA: 1115 | ||
| 150 kVA: 420 | 150 kVA: 500 | 250 kVA: 583 | 500 kVA: 1158 | ||
| 150 kVA: 420 | 150 kVA: 500 | 250 kVA: 583 | 500 kVA: 1158 | ||
| 180 kVA: 535 | 550 kVA: 1201 | ||||
| 210 kVA: 570 | 600 kVA: 1244 | ||||
| 240 kVA: 602 | |||||
| 270 kVA: 635 | |||||
| 300 kVA: 670 |
